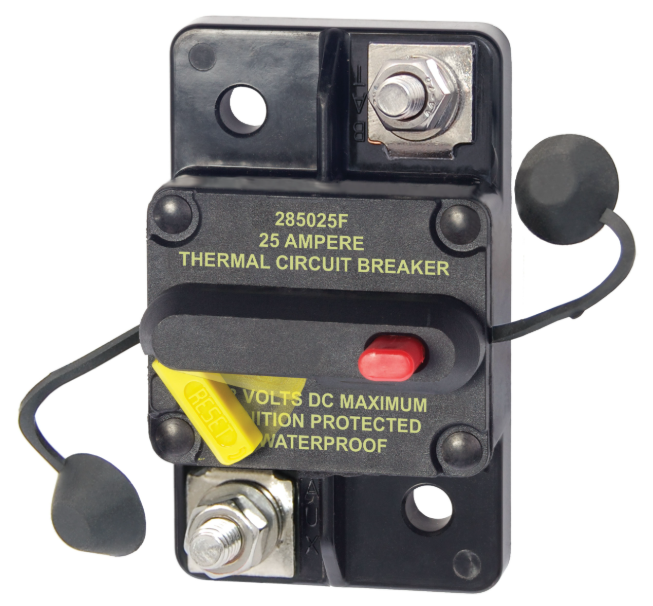

Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* "Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expected.
Amperage 25A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud M6 (accepts 1/4" Ring Terminal) Terminal Stud Torque 60 in-lb (6.78 Nm) Interrupt Capacity The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage. 3000A @ 48V Achieved using SAE J1625 Minimum Operating Temperature -40° C Maximum Operating Temperature 85° C Circuit Breaker Class Type III - switchable/manual reset - trip free Weight 0.50lb (0.23 kg)
Get in touch with the team to learn more or request a quote about the CIRCUIT BREAKER 25A.
