HIGHFIELD Sport 520


$0.00
* Sail Away

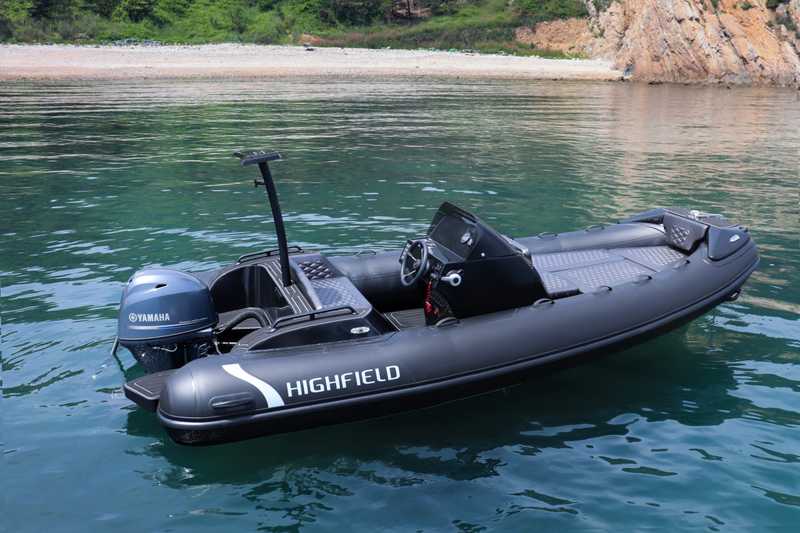

The new 2021 Sport 520 is a perfect boat for day use or to explore into your next adventure. The heavy duty 24 degree deadrise hull combined with a 100hp rating and built-in under deck 28 gallon fuel tank, provides a smooth ride to your closest beach or gets you home safe when conditions get rough. In rough conditions there is more than one driving position due to the driver side 3 position flip-up bolster. The large deluxe console with tall tinted windscreen and grab rail accommodates a 9” chart plotter for navigation to get you safely home.

Boat Details
  • Make: HIGHFIELD
  • Name: Sport 520
  • Model Number: N/A
  • Year: 2023
  • Length: 5.23 metres
  • Width: 2.46 metres
  • Dry Weight: 516 kg
  • Hull Material: Inflatable
  • Hull Type: Mono
  • Passenger Capacity: 10
  • Boat Usage: N/A
  • Steering: Side Console
  • Warranty: Contact Dealer

Specifications
Overall Length 5.23 m/17'2"
Internal Length 3.43 m/11'3"
Overall Width 2.46 m/6'10"
Internal Width 1.30 cm/4'3"
Dead Rise
24 deg/td>
Tube Diameter 52 cm/20"
Number of air chambers 6
Maximum Load 1058 kg/2332 lbs
Maximum People 10
Boat Only Weight
516 kg/1136 lbs
Recommended Power
90 hp
Maximum Power
100hp
Engine Shaft
long
Fuel Tank
105L/28gal
Design Category
C
Additional Notes
Boat weight console.*US boats have mandatory EPA fuel wihch reduces the published fuel capacity by 20-25% depending on the static filing level of the boat.

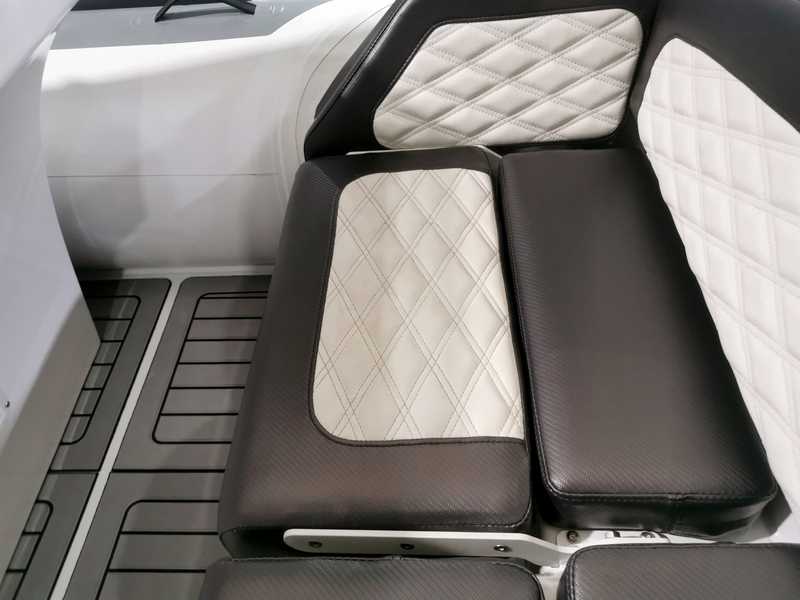

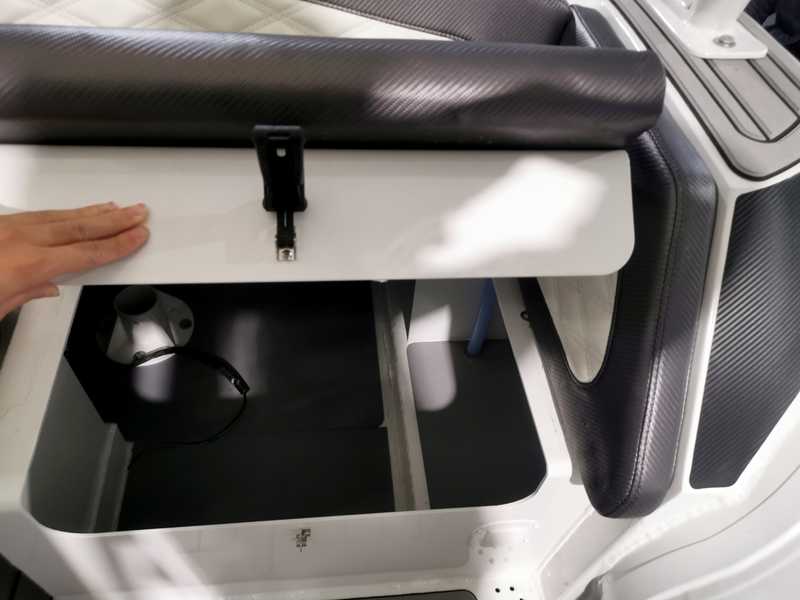

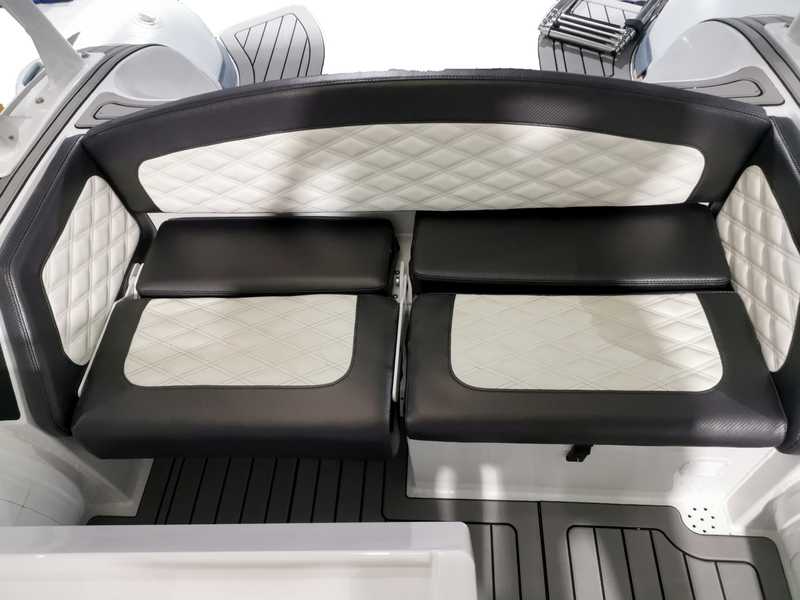

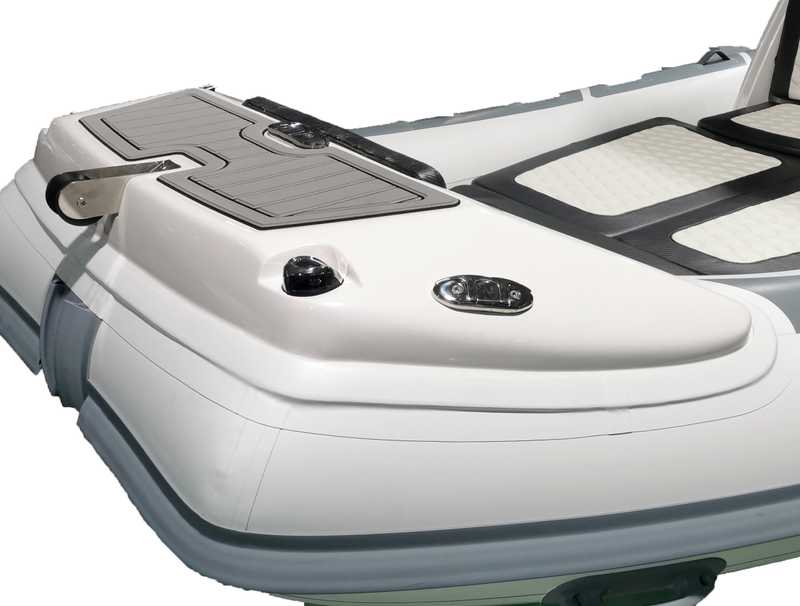

High tensile chromated & powder coated aluminum hull – NEW High-Performance 24º deadrise hull with welded lift stakes – ORCA® Hypalon or Valmex® PVC tube – Welded seams (PVC) – Flush mount non-return air valves – Self-draining cockpit – Double diamond stitch cushions with carbon fabric upholstery – Extra wide bow boarding step, with anchor line bow roller – Recessed stainless steel folding cleats – Deluxe console with tinted windshield and grab rail – Driver side Flip-up Bolster seat, 3 position seating for driver – Optional Carbon finished dashboard, dash fits a 9” flush mount chartplotter – Integrated Under Deck installed 28 gal/105L EPA Fuel System – Three (3) storage compartments with hydraulic assist lids – EVA brushed foam teak finished deck – Stainless Steel folding davit lifting points (4) – Welded direct to hull towing bridle points (2) – LED deck lights – Six (6) LED lit panel switches – Electrical pack including bilge pump & lights for boat & console – Heavy duty splash guard rub strake – Full length durable keel guard – Highfield dry bag – Foot pump, paddles, repair kit
